SP8030 3 Phase Rotation Sequence Indicator Meter Tester Detector 200V-480V
Features:
1.One Unit with two functions:Check the phase sequence and indicate the phase is open or not.
2.Safe and reliable:With alligator clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
3.Wide voltage test:It can check 200V to 480V AC three-phase voltage,high performance.
4.Easy to use:With LED light to show if the phase is open or not,supports buzzer indication.
5.Portable design:Small and light weight,with a carrying bag, convenient to take.
Description:

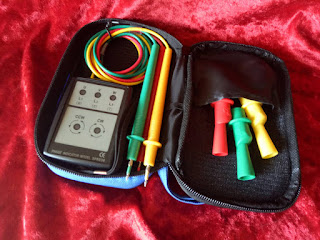

This SP8030 three-phase rotation tester is designed to check the phase sequence and show if the phase is open or not.
Specifications:
Model:SP8030
Operation voltage:200V～480V AC three phase
Operation frequency range:20Hz～400Hz
Limit time for continuous measurement:
60 minutes maximum at 200V AC
4 minutes maximum at 480V AC
Phase Sequence Indicator LED:
Green for correct phase sequence,intermittent beep
Red for reverse phase sequence,continuous beep
Test pen and cable length:80cm
Size:80 x 60 x 23mm
Item Weight:136g
Package Information:
Package Size:17.2 x 11 x 5cm / 6.8 x 4.3 x 2in
Package Weight:239g / 8.8oz
